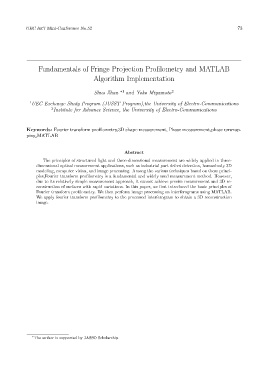

UEC Int’l Mini-Conference No.52                                                               73









                  Fundamentals of Fringe Projection Profilometry and MATLAB

                                           Algorithm Implementation


                                           Shuo Zhan  ∗1  and Yoko Miyamoto  2

              1 UEC Exchange Study Program (JUSST Program),the University of Electro-Communications
                        2 Institute for Advance Science, the University of Electro-Communications



             Keywords: Fourier transform profilometry,3D shape measurement, Phase measurement,phase unwrap-
             ping,MATLAB



                                                        Abstract
                    The principles of structured light and three-dimensional measurement are widely applied in three-
                 dimensional optical measurement applications, such as industrial part defect detection, humanbody 3D
                 modeling, computer vision, and image processing. Among the various techniques based on these princi-
                 ples,Fourier transform profilometry is a fundamental and widely used measurement method. However,
                 due to its relatively simple measurement approach, it cannot achieve precise measurement and 3D re-
                 construction of surfaces with rapid variations. In this paper, we first introduced the basic principles of
                 Fourier transform profilometry. We then perform image processing on interferograms using MATLAB.
                 We apply fourier transform profilometry to the processed interferogram to obtain a 3D reconstruction
                 image.



































               ∗
                The author is supported by JASSO Scholarship.
