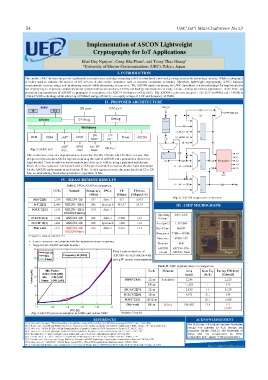

54 UEC Int’l Mini-Conference No.53

Implementation of ASCON Lightweight
Cryptography for IoT Applications

1
1
Khai-Duy Nguyen , Cong-Kha Pham , and Trong-Thuc Hoang 1
1 University of Electro-Communications (UEC), Tokyo, Japan
I. INTRODUCTION
The number of IoT devices has grown significantly in recent years, and edge computing in IoT is considered a new and growing trend in the technology industry. While cryptography
is widely used to enhance the security of IoT devices, it also carries limitations such as resource constraints or latency. Therefore, lightweight cryptography (LWC) balances
commensurate resource usage and maintaining security while minimizing system costs. The ASCON stands out among the LWC algorithms as a potential target for implementation
and cryptoanalysis. It provides authenticated encryption with associated data (AEAD) and hashing functionalities in many variants, aiming for various applications. In this brief, we
present an implementation of ASCON cryptography as a peripheral of a RISC-V System-on-a-Chip (SoC). The ASCON crypto core occupies 1,424 LUTs in FPGA and 17.4kGE in
180nm CMOS technology while achieving 417Gbits/J energy efficiency at a supply voltage of 1.0V and frequency of 2MHz.
II . PROPOSED ARCHITECTURE
SERV SPI port JTAG port
I$ D$

Arbiter SPI Prog. Debug
Wishbone
RAM ROM UART GPIO SPI SPI Timer ASCON
RAM
UART
ROM
Mem. Ctrl.
UART GPIO Ext. SPI
Fig. 1: SERV SoC Port Port Mem. SPI Port
The architecture shows the implementation of both the ASCON-128 and ASCON-Hash variants. This
design revolves around a 320-bit register containing the state of ASCON and a permutation block to be
implemented. There is only one transformation per clock cycle without using a pipelined architecture.
Given that this crypto core is integrated with a 32-bit processor and bus system, the data input and output
for the ASCON implementation are fixed at 32 bits. A shift register converts the input data from 32 to 128
bits, accommodating fixed-sized parameters larger than 32 bits.
IV . MEASUREMENT RESULTS
Table I. FPGA AEAD in comparison.
LUTs Variant Frequency FPGA TP TP/Area
[MHz] [Mbps] [Mbps/LUT]
Fig. 2: ASCON crypto core architecture
iSES’22[1] 1,330 ASCON-128 107 Artix-7 457 0.343
IoT’22[2] 2,060 ASCON-128/a 206 Spartan-6 315.2* 0.153 III . CHIP MICROGRAPH
SOCC’22[3] 1,548 ASCON-128/a 244 Artix-7 - -
ASCON-Hash/a
Operating 1.0V~2.0V
ICECS’22[4] 1,324 ASCON-128 280 Artix-7 2,560 1.93 Voltage
FCCM’18[5] 1,402 ASCON-128 208 Spartan-6 1,906 1.36 Area[µm2] 1,125,000
This work 1,277 ASCON-128 294 Artix-7 2,233 1.75 Gate Count 86kGE
ASCON-Hash
Frequency 32kHz~40MHz
*Throughput value of ASCON-128
Processor SERV-32E
• Lowest resource consumption with the highest maximum frequency Memory 4kB
• Support both AEAD and hash function
ASCON ASCON-128+
First implementation of variant ASCON-Hash
ASCON on real silicon with
sub-µW power consumption
Table II. ASIC implementation in comparison.
Tech. Measure Area Gate Eq. Energy Efficiency
(µm2) [kGE] [Gbits/J]
ISDFS’24[6] 22nm Simulation 2,206 - 2,223
130nm 41,821 - 179
ISCAS’22[7] 22nm 2,193 11 1,528
ICECS’22[8] 28nm 4,971 10.1 134
SOCC’22[3] 28/32nm - 25.1 3,628
This work 180nm Silicon 166,802 17.4 417
3,628*
Fig. 3 ASCON power consumption at 32kHz and various VDD *Scaled to 32nm [9]
REFERENCES ACKNOWLEDGEMENT
[1] K. Raj, and S. Bodapati, “FPGA Based Light Weight Encryption of Medical Data for IoMT Devices using ASCON Cipher,” iSES, 2022. The VLSI chip in this study has been fabricated
[2] S. Khan et al., “Scalable and Efficient Hardware Architectures for Authenticated Encryption in IoT Applications,” IEEE Internet of Things Journal, 2021.
[3] X. Wei et al., “RECO-HCON: A High-Throughput Reconfigurable Compact ASCON Processor for Trusted IoT,” SOCC, 2022 . through the activities of VLSI Design and
[4] C. Guo et al., “Unified Lightweight Authenticated Encryption for Resource-Constrained Electronic Control Unit,” ICECS, 2022. Education Center (VDEC), the University of
[5] F. Farahmand et al., “Improved Lightweight Implementations of CAESAR Authenticated Ciphers,” FCCM, 2018. Tokyo with the collaboration by Rohm
[6] I. Elsadek, and E. Y. Tawfik, “Efficient Programable Architecture for LWC NIST FIPS Standard ASCON,” ISDFS, 2024. Corporation and Toppan Printing Corporation.
[7] I. Elsadek et al., “Hardware and Energy Efficiency Evaluation of NIST Lightweight Cryptography Standardization Finalists,” ISCAS, 2022.
[8] N. Roussel et al., “CMOS/STT-MRAM Based Ascon LWC: a Power Efficient Hardware Implementation,” ICECS, 2022.
[9] A. Stillmaker and B. Baas, “Scaling Equations for the Accurate Predic- tion of CMOS Device Performance from 180nm to 7nm,” Integration, 2017. Email: khaiduy@vlsilab.ee.uec.ac.jp
